In industries where steam, gas, or fluids are used, one of the most important requirements is to control pressure. High pressure at the source may not be suitable for downstream equipment or processes. If not reduced properly, it can lead to safety issues, energy losses, and damage to expensive machinery. This is why every modern industrial setup needs a Pressure Reducing Station (PRS station).
A Pressure Reducing Station is not just a single valve—it is a complete system designed to reduce, control, and stabilize pressure for safe and efficient operations. If you are planning to install or upgrade a PRS station in your plant, it is essential to understand how it works, what components it includes, and how to select the right one for your specific application.
This article will guide you through all these aspects in simple and clear language so that both technical teams and decision-makers can make informed choices.
What Is a Pressure Reducing Station?
A Pressure Reducing Station (PRS) is an arrangement of valves, instruments, and safety devices designed to reduce high inlet pressure of steam, gas, or fluid to a lower, controlled outlet pressure. The main purpose of a PRS is to supply pressure at a safe, stable, and required level so that downstream equipment can function without risk.
In many industries, the supply pressure is always higher than the process requirement. For example:
- In a steam network, steam generated in boilers is at high pressure (say 40 bar) but equipment like heat exchangers or sterilizers may only need 5–10 bar steam.
- In a gas distribution line, the supply pressure could be several kilograms per square centimeter (kg/cm²), while the process only needs a fraction of that.
Here, the PRS station ensures smooth pressure reduction and continuous supply.
Difference Between PRS Station and PRV Station
A lot of people confuse PRS station with PRV station. While the terms are related, there is a difference:
- A PRV station (Pressure Reducing Valve station) usually refers to a setup where only a single Pressure Reducing Valve (PRV) is installed with basic accessories. It is suitable for small-scale applications.
- A PRS station is a more comprehensive arrangement that includes multiple components like PRVs, safety relief valves, strainers, isolation valves, gauges, bypass lines, and sometimes redundant systems for reliability.
So, while a PRV station is a part of the setup, a PRS station is the complete system designed for industrial use.

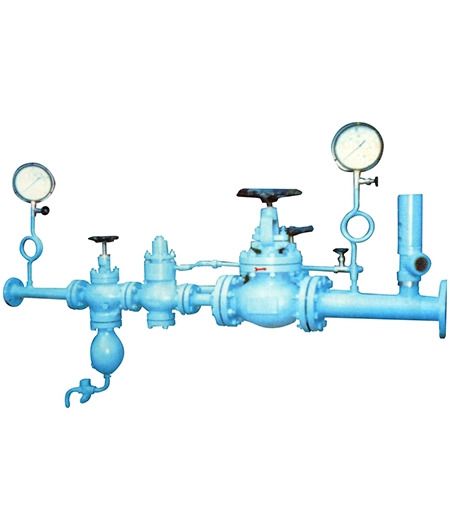

Main Components of a Pressure Reducing Station
A well-designed PRS station generally consists of the following parts:
- Pressure Reducing Valve (PRV): The heart of the system. It reduces high inlet pressure to the desired outlet pressure.
- Safety Relief Valve: Protects downstream equipment in case of accidental overpressure.
- Isolation Valves: Allow maintenance work without shutting down the entire plant.
- Strainers/Filters: Prevent dirt, rust, or other particles from entering the PRV and causing damage.
- Pressure Gauges/Transmitters: Help monitor both inlet and outlet pressure at all times.
- Bypass Line: Used for maintenance or emergencies to keep the supply running.
- Drip Legs and Steam Traps (in steam service): Remove condensate and prevent water hammer.
Together, these components make the PRS station safe, reliable, and efficient.
Why Is a Pressure Reducing Station Important?
Choosing the right Pressure Reducing Station is critical because:
- Safety: Prevents high-pressure accidents that can damage equipment or cause injuries.
- Efficiency: Ensures optimum use of steam, gas, or fluids with minimum energy loss.
- Equipment Protection: Extends the life of heat exchangers, turbines, reactors, and pipelines.
- Process Stability: Maintains constant outlet pressure even when inlet pressure fluctuates.
- Compliance: Meets industrial safety standards and regulations (such as ASME or IBR in India).
Without a properly sized PRS, your plant could face pressure instability, energy waste, and operational hazards.
Factors to Consider When Choosing a Pressure Reducing Station
When selecting the right PRS station for your plant, you should evaluate several technical and practical factors.
1. Type of Fluid or Gas
- Steam PRS: Requires special accessories like drip legs and steam traps to handle condensate.
- Gas PRS: Needs safety shut-off valves and flameproof enclosures in some cases.
- Water or liquid PRS: Requires corrosion-resistant materials like stainless steel.
2. Inlet and Outlet Pressure
- Always calculate maximum inlet pressure and required outlet pressure.
- Ensure that the PRV can handle variations in inlet conditions without hunting or instability.
3. Flow Rate and Capacity
- Calculate maximum, minimum, and average flow requirements.
- Oversized PRS stations cause pressure fluctuations; undersized ones lead to insufficient supply.
4. Temperature Range
- Steam and high-temperature gases require robust materials and designs.
- Incorrect temperature handling may lead to leakage, wear, or sudden failure.
5. Safety Provisions
- Always include a safety relief valve.
- Ensure compliance with global standards like ASME, ISO, or IBR.
6. Material of Construction
- Choose materials suitable for the medium:
- Stainless steel for corrosive fluids
- Cast steel for steam
- Alloy steel for high-temperature or high-pressure applications
7. Reliability and Redundancy
- For critical plants, dual PRVs (duty and standby) are recommended for uninterrupted supply.
- A bypass line is essential for emergency use.
Best Practices for Installing and Maintaining a PRS Station
To ensure long-term performance of your Pressure Reducing Station:
- Install a strainer before the PRV to filter out dirt and debris.
- Keep pressure gauges at both inlet and outlet for easy monitoring.
- Use insulation on steam lines to prevent heat loss.
- Provide a proper bypass line for emergency situations.
- Perform regular inspection and maintenance to prevent sudden failures.
- Calibrate pressure settings periodically to maintain accuracy.
Applications of Pressure Reducing Stations
PRS stations are used in almost every industry where steam, gas, or fluids are involved. Some common applications include:
- Power Plants: For reducing steam pressure before it enters turbines or auxiliary systems.
- Oil & Gas Industry: For gas distribution and regulation in refineries and pipelines.
- Pharmaceuticals: Clean steam supply for sterilization and manufacturing.
- Food & Beverage Industry: Steam cooking, sterilization, and heating processes.
- Chemical Plants: Pressure control in reactors, distillation columns, and process equipment.
- Water Supply Systems: Ensuring stable water pressure in pipelines and distribution networks.
Conclusion
A Pressure Reducing Station (PRS station) is an essential part of any industrial process where pressure needs to be controlled for safety, efficiency, and equipment protection. While a PRV station may be sufficient for smaller applications, larger and more complex plants require a full-fledged PRS station with all safety and monitoring components.
When choosing a PRS station for your plant, always consider fluid type, pressure range, flow capacity, safety requirements, and material selection. Installing the right station will not only protect your plant but also improve efficiency, reduce downtime, and save operational costs.
In short, investing in the right Pressure Reducing Station is not just a technical decision—it is a long-term safeguard for your plant’s performance and safety.
